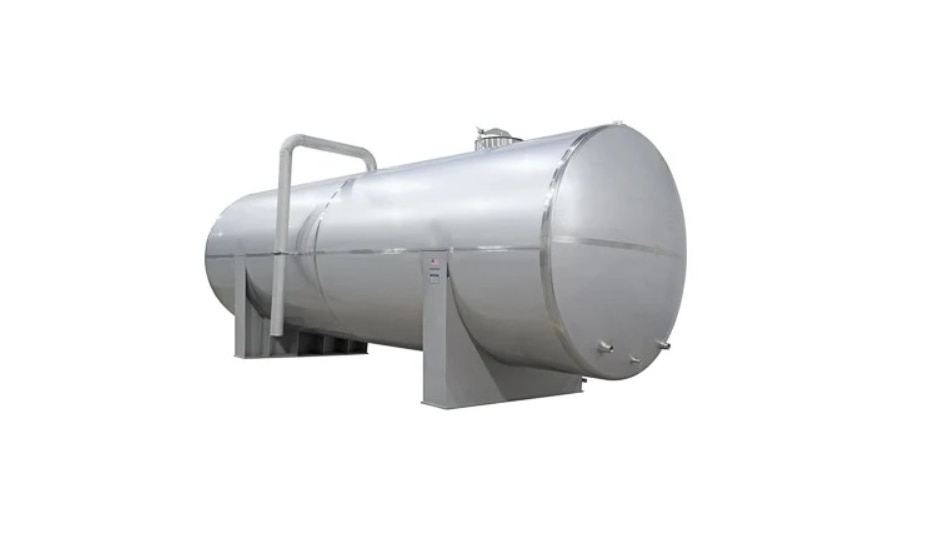

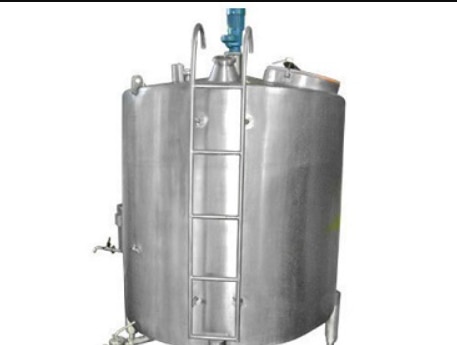

Storage Vessel
Description
Storage Vessel Manufacturer
Rachanashakti Fabtech Pvt Ltd offering You Pressure Vessel is leak proof nature, high temperature resistance and low maintenance. We offer these vessels at a reasonable price.
Wide range of volumes From 0.5KL to 100KL
Construction Material grade is MS-IS2062, SS304/304L/316/316L, CS-SA516 Gr 60/70, our Pressure Vessel are regarded for their attributes like, Pressure Vessel Design Thickness as per Pressure Detail & Design Code :- ASME SEC VIII DIV 1 ,Good Engineering Practices.
Specifications
✓ We have made the Pressure Vessel consist of a cylindrical vertical shell with standard Tori spherical/ Ellipsoidal dish on both ends.
✓ Connection as per Requirement of Client, Thickness is deepened on diameter, Length of Tank & Working Pressure of Tank Pressure 0.1 Bar To 350 Bar
✓ Rachanashakti Fabtech Pvt Ltd Provide Excellent Finish, Long Lasting, Easy to clean Tank, Leek Proof Tank.
✓ We Provide Tank with QC Dossier (Hydro test Report, Drawing, Material Test Report, Internal Inspection Report ,1 year Warranty and more detail)
Application industries :
⦿ All Industries
⦿ Chemical Industries
⦿ Process Plant
⦿ Power plant
⦿ Ginning Mill
⦿ Tex tiles Industries
Specifications
| Design | ASME SEC VIII DIV 1 |
|---|---|
| Agitator | Anchor, Flat, turbine, and capable to design new as per customers requirement |
| Disc | SS316, SS304, MS IS2062, SA516 Gr.60/70, Monel 400 & Other High Temperature Grades |
| Accessories | Pressure Gauge, Safety Valve, Drain valve and all other accessories. |
| Thickness | 3 mm – 50 mm |
| Heating / Cooling System | Limpet, Jacketed and Internal Coil for Cooling |
| Pressure holding capacity | 1 bar – 100 bar. |
| Documents | Vessel will provide with Hydro-test Report, Drawing, Material Test Report, Internal Inspection Report, 1 Year Warranty. |
