Thermic Boiler

Thermic Boiler Manufacturer

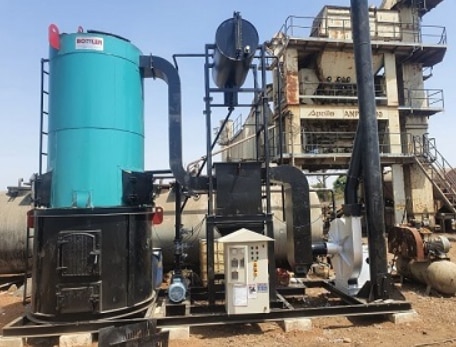

This system is forced circulation fully automatic thermic fluid heater where thermic fluid is circulated in a closed loop through heater and user equipment circuit where the heat is dissipated to process. The same thermic fluid is re-circulated through heater for heating. The thermic fluid heater gives high temperature up to 300°C using thermic fluid oil at near atmospheric pressure as compared to steam heating which requires 85 Kg/Cm2 pressure.

Our Autoclave Reactor Manufacturing Principles :

⦿ Digital Electronic indicator cum controller forward/return temperature for ID fan off.

⦿ Electronic stack temperature controller shuts of the unit in case of abnormally low temperature.

⦿ Electronic low-level controller in expansion cum deaerator tank shuts off the unit in case of low thermic fluid level in tank.

⦿ Electronic forward high temperature safety controllers shut off the unit case forward temperature exceeds than minimum recommended temperature.

⦿ Differential pressure switch shuts off in case of abnormal fluid flow conditions.

⦿ Pressure gauge for inlet pressure measurement.

⦿ Pressure gauge for circuit pressure measurement.

⦿ Audio visual alarm for abnormal operating conditions.
